名前:Ming's Parametric GEAR
説明:With this model you can generate ANY Pin Hub Spur Gear model. Go to the Configuration Tree, right click on the table icon and select "Edit Table", change the value for each parameter: N_Teeth, Pd, Pres. Angle, Face Width, Hub Diam., Hub Proj., Bore Diam., Set Srew Diam. Then just click anywhere outside the table and the model will re-generate with your input values. Note: only use values that are physically posible, otherwise you will get errors.
ｻﾌﾟﾗｲﾔ名:N/A
ｻﾌﾟﾗｲﾔ部品番号:N/A

  • 設定とﾀﾞｳﾝﾛｰﾄﾞ
  • 評価とｺﾒﾝﾄ (8)
  • ﾀｸﾞ (0)
  • 代替ﾊﾞｰｼﾞｮﾝ



指定されたｻｲｽﾞ設定ﾊﾟﾗﾒｰﾀｰに従って、3D または 2D ﾌｫｰﾏｯﾄでﾓﾃﾞﾙをﾀﾞｳﾝﾛｰﾄﾞします。
(ﾛｸﾞｲﾝが必要)
  ｺﾒﾝﾄを追加  (ﾛｸﾞｲﾝが必要)

ﾋﾞｭｰ:       ﾍﾟｰｼﾞごとの結果::
Vladimir Vaynshteyn
2020/04/13 23:56:08

Best Spur Gear Template I ever found before.
Really best Template design for Spur Gears. Easy to USE, Easy to Modify!
People who complain or didn''t give it a 5-STAR either didn''t download it co...

不適切なｺﾒﾝﾄを報告 詳細

Jerome ravoet
2018/06/21 10:29:22

simple to use
Really simple to use

不適切なｺﾒﾝﾄを報告

James Peoples
2012/11/05 12:43:55

Excellent but alteration required.
I had to recreate design table because it disappeared from my copy, but no big deal. This is an excellent and time-saving model.

不適切なｺﾒﾝﾄを報告

Ming Yei
2011/11/18 13:34:59

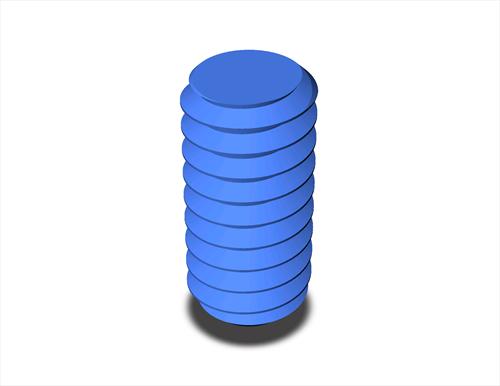

Check out Ming''s Parametric UNS Screw
