Robust Involute Spur Gear Generator Equ Driven

ｻﾌﾟﾗｲﾔ:
User Library
ﾓﾃﾞﾙ名:
Robust Involute Spur Gear Generator Equ Driven
ｺﾝﾌｨｷﾞｭﾚｰｼｮﾝ名:
部品番号:
XXX
数量:
ﾌｧｰｽﾄﾈｰﾑ(名):
ﾗｽﾄﾈｰﾑ(姓):
電子ﾒｰﾙ:
電話番号:
会社名:
住所:
市/区/町:
都道府県名:
国:
郵便番号:
ｺﾒﾝﾄ:
ｺﾋﾟｰを電子ﾒｰﾙで送信:

変更日時: 9月 06,2016
評価:
ﾀﾞｳﾝﾛｰﾄﾞ: 728

ｺﾒﾝﾄ:



このﾓﾃﾞﾙのより優れたﾊﾞｰｼﾞｮﾝまたは修正ﾊﾞｰｼﾞｮﾝを持っていますか?
代替ﾊﾞｰｼﾞｮﾝを投稿   (ﾛｸﾞｲﾝが必要)
この 3D ﾓﾃﾞﾙをﾌﾞﾛｸﾞに埋め込む


不適切なｺﾝﾃﾝﾂを報告

仕様
ｻﾌﾟﾗｲﾔ部品番号: XXX
名前:Robust Involute Spur Gear Generator Equ Driven

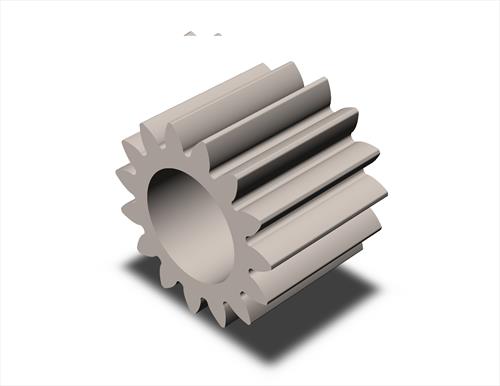

説明:Robust Involute Spur Gear Generator Solidworks For modeling a TRUE Involute Spur Gear in Solidworks This template is built with some "IF" "THEN" statements So it is a bit more Robust than my previous postings This is with the Gullet of the first tooth cut on the "Y" axis Note: this template is set for the User input of the following:.... "Diametrical Pitch" .... "Number of Teeth" .... "Pressure Angle" .... ............................................. GLOBAL VARIABLES ............................................. "DiametralPitch"= User Input.... “NumTeeth"= User Input.... “PressureAngle"= User Input....
ｻﾌﾟﾗｲﾔ部品番号:XXX

  • 設定とﾀﾞｳﾝﾛｰﾄﾞ
  • 評価とｺﾒﾝﾄ (8)
  • ﾀｸﾞ (0)
  • 代替ﾊﾞｰｼﾞｮﾝ



指定されたｻｲｽﾞ設定ﾊﾟﾗﾒｰﾀｰに従って、3D または 2D ﾌｫｰﾏｯﾄでﾓﾃﾞﾙをﾀﾞｳﾝﾛｰﾄﾞします。
(ﾛｸﾞｲﾝが必要)
  ｺﾒﾝﾄを追加  (ﾛｸﾞｲﾝが必要)

ﾋﾞｭｰ:       ﾍﾟｰｼﾞごとの結果::
Kevin Harding
2021/01/28 11:50:25

Great Design
I downloaded your model in an effort to redraw a WWII vintage gear that SW design library couldn''t come close to.  After download, I updated your des...

不適切なｺﾒﾝﾄを報告 詳細

MiguelAngel Gutierrez
2020/09/15 22:34:40

Thank you for sharing. True knowledge of precisi
The value of parametric design in what is the heart of your product is gold.
All products with precision motion should look to do this, so the design ...

不適切なｺﾒﾝﾄを報告 詳細

Mario Wutte
2019/02/18 10:19:24

You can''t really grouse
This part saved me lots of work.
Thanks for sharing

不適切なｺﾒﾝﾄを報告

Steve Ritter
2018/08/31 12:07:23

Great Part - very useful
This is a robust part indeed. Thanks for sharing it.

不適切なｺﾒﾝﾄを報告

Bill Ding
2017/11/29 8:45:27

Great work!
Great work!

不適切なｺﾒﾝﾄを報告

Michael Hanes
2017/08/02 9:27:07

Great for generating gears for 3D printing
Used with a formula from Machinery''s Handbook to generate a set of gears at a fixed center distance then added the attachment directly to the gear an...

不適切なｺﾒﾝﾄを報告 詳細

james watson
2017/02/20 17:04:44

great model and equation set
Thanks for making this model with the corresponding equations.  Once you figure out the user input fields (under tool/equations), it is quite easy to ...

不適切なｺﾒﾝﾄを報告 詳細

Dietrich Kanzler
2016/12/04 21:35:34

Really useful gear generator for Solidworks.
I am using this to generate gears in Solidworks to 3D print replacement gears for a metal cutting engine lathe. It was a little tricky to figure out t...

不適切なｺﾒﾝﾄを報告 詳細
